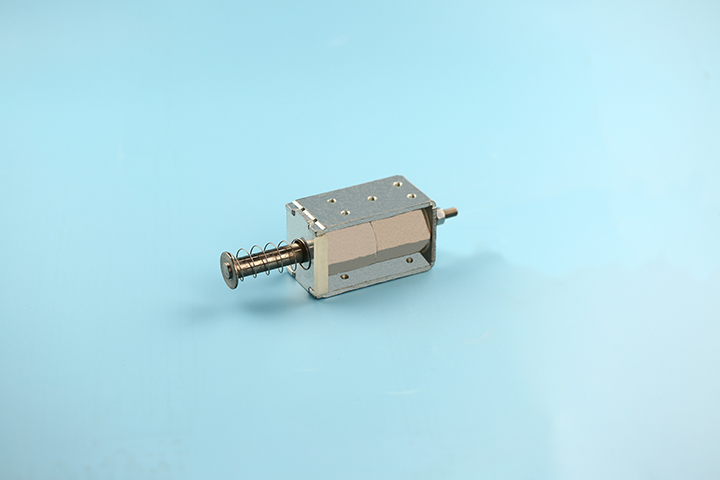

高性能推拉式线性电磁铁
High performance push-pull linear electromagnet
主要用于中高压输配电站电气控制柜分合闸通断开关，收到信号可以控制电磁铁吸合，断开从而来控制电器柜开关。
It is mainly used for the on-off switch of the electrical control cabinet in the medium and high voltage power transmission and distribution station. When receiving the signal, it can control the electromagnet to pull on and disconnect to control the switch of the electrical cabinet.
产品描述
- 应用领域 Application area -
应用于高压断路器系统电磁铁。
It is applied to electromagnet of high-voltage circuit breaker system.
- 主要参数 Main parameter-
|
外形尺寸 Overall dimensions |
P035/P050/P070 |
|
电阻 Resistance |
61 Ω ±5% |
|
电流 Electric current |
0.3-1.8A |
|
反应时间 Reaction time |
5-20Ms |
|
行程 Trip |
9.5MM |
|
绝缘耐压 Dielectric Strength |
1500V/3mA/1s |
|
输入电压 Insulation withstand voltage input voltage |
DC 110V/125V /220V (电压可选） (Voltage optional) |
|
通电比 Power on ratio |
1-10% |
|
防护 Protect |
IP54 |
|
耐温 Temperature resistance |
155° |
|
功率 Power |
198W(功率可设计） (Power can be designed) |
